Minggu, 14 Juni 2015
KOMUNIKASI ETHERNET
Asalammualaikum Wr.Wb
kali ini saya akan membahas tentang KOMUNIKASI ETHERNET
Dasar Teori
Komunikasi Ethernet merupakan salah satu jenis komunikasi yang paling sering
ditemui saat ini. Penggunaannya juga beragam, bisa digunakan untuk komunikasi antar
PC, PC dengan mikrokontroller, PC dengan PLC, PLC dengan PLC dan sebagainya.
Komunikasi Ethernet dapat menggunakan media berupa kabel maupun nirkabel.
Media kabel yang digunakan biasanya berupa kabel UTP yang ditiap ujungnya terdapat
konektor RJ45, sedangkan yang nirkabel biasanya memanfaatkan router wireless. Untuk
mengenali tujuan pengiriman data, komunikasi ini menggunakan IP address dan port. IP
Address dianalogikan sebagai kompleks perumahan, dan port dianalogikan sebagai
nomor rumah. Jika IP Address dan port yang digunakan asal-asalan, maka paket data
yang dikirimkan juga tidak akan pernah sampai ke device tujuan.
Pada komunikasi Ethernet terdapat 2 jenis protocol pengiriman data, yaitu TCP dan
UDP. Kedua protocol tersebut memiliki kelebihan dan kekurangan masing-masing. Pada
praktikum kali ini, kita akan membuat sebuah aplikasi chatting teks sederhana
menggunakan protocol UDP.
Tahap pembuatan
1. Buat project baru, kemudian susun form control seperti pada gambar.
2. Tambahkan library berikut ini
Library tersebut digunakan untuk mengakses thread, socket dan beberapa method
yang dibutuhkan untuk pembuatan aplikasi.
yang dibutuhkan untuk pembuatan aplikasi.

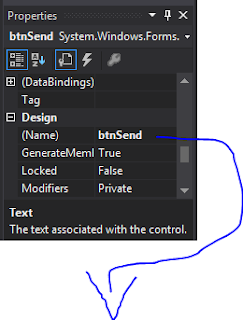

Selanjutnya Sebelum membuat coding yang harus anda perhatikan ialah merubah name di Textbox dan Button
diganti namenya agar sesuai dengan coding yang ada di bawah ini..
diganti namenya agar sesuai dengan coding yang ada di bawah ini..
3. Salin dan sesuaikan program dibawah ini ke project anda,
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Net;
using System.Net.Sockets;
using System.Threading;
namespace komunikasi_Ethernett
{
public partial class Form1 : Form
{
delegate void AddMessage(string message);
string userName;
int port = 11000;
const string broadcastAddress = "192.168.0.255";
UdpClient receivingClient = new UdpClient(11000);
UdpClient sendingClient;
Thread receivingThread;
public Form1()
{
InitializeComponent();
this.Load += new EventHandler(Form1_Load);
btnSend.Click += new EventHandler(button1_Click);
}
private void Form1_Load(object sender, EventArgs e)
{
btnSend.Focus();
InitializeSender();
InitializeReceiver();
}
private void InitializeSender()
{
sendingClient = new UdpClient(broadcastAddress, port);
sendingClient.EnableBroadcast = true;
}
private void InitializeReceiver()
{
ThreadStart start = new ThreadStart(Reciver);
receivingThread=new Thread(start);
receivingThread.IsBackground = true;
receivingThread.Start();
}
private void button1_Click(object sender, EventArgs e)
{
tbSend.Text = tbSend.Text.TrimEnd();
if (!string.IsNullOrEmpty(tbSend.Text))
{
string toSend = "<" + Environment.MachineName + ">" + tbSend.Text;
byte[] data = Encoding.ASCII.GetBytes(toSend);
sendingClient.Send(data,data.Length);
tbSend.Text="";
}
tbSend.Focus();
}
private void Reciver()
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, port);
AddMessage messageDelegate = messageReceived;
while (true)
{
byte[] data = receivingClient.Receive(ref endPoint);
string message = Encoding.ASCII.GetString(data);
Invoke(messageDelegate, message);
System.Console.Beep(1500, 300);
}
}
private void messageReceived(string message)
{
rtbSend.Text += message + "\n";
}
}
}
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Net;
using System.Net.Sockets;
using System.Threading;
namespace komunikasi_Ethernett
{
public partial class Form1 : Form
{
delegate void AddMessage(string message);
string userName;
int port = 11000;
const string broadcastAddress = "192.168.0.255";
UdpClient receivingClient = new UdpClient(11000);
UdpClient sendingClient;
Thread receivingThread;
public Form1()
{
InitializeComponent();
this.Load += new EventHandler(Form1_Load);
btnSend.Click += new EventHandler(button1_Click);
}
private void Form1_Load(object sender, EventArgs e)
{
btnSend.Focus();
InitializeSender();
InitializeReceiver();
}
private void InitializeSender()
{
sendingClient = new UdpClient(broadcastAddress, port);
sendingClient.EnableBroadcast = true;
}
private void InitializeReceiver()
{
ThreadStart start = new ThreadStart(Reciver);
receivingThread=new Thread(start);
receivingThread.IsBackground = true;
receivingThread.Start();
}
private void button1_Click(object sender, EventArgs e)
{
tbSend.Text = tbSend.Text.TrimEnd();
if (!string.IsNullOrEmpty(tbSend.Text))
{
string toSend = "<" + Environment.MachineName + ">" + tbSend.Text;
byte[] data = Encoding.ASCII.GetBytes(toSend);
sendingClient.Send(data,data.Length);
tbSend.Text="";
}
tbSend.Focus();
}
private void Reciver()
{
IPEndPoint endPoint = new IPEndPoint(IPAddress.Any, port);
AddMessage messageDelegate = messageReceived;
while (true)
{
byte[] data = receivingClient.Receive(ref endPoint);
string message = Encoding.ASCII.GetString(data);
Invoke(messageDelegate, message);
System.Console.Beep(1500, 300);
}
}
private void messageReceived(string message)
{
rtbSend.Text += message + "\n";
}
}
}
4. Compile dan jalankan aplikasi.
5. Coba ganti IP address dan port yang digunakan.
6. Compile aplikasi kemudian amati.
Jumat, 29 Mei 2015
Aplikasi yang digunakan untuk menghidupkan danmematikan 3 buah LED
Asalammualaikum Wr.Wb
Selamat datang kembali sahabat mardianto, kali ini saya akan membuat :::::::
Sebuah aplikasi yang digunakan untuk menghidupkan dan
mematikan 3 buah LED yang ada pada Arduino. Pengaturan komunikasi
serial dapat dilakukan langsung pada aplikasi tanpa harus mengubah
program aplikasi.
ini adalah bentuk codingannya yang pertama ::::
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApplication1
{
public partial class Form1 : Form
{
int a = 0;
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
if(a==1)
{
button1.Text = "Connect";
serialPort1.Close();
a = 0;
this.Close();
}
else
{
button1.Text = "Disconnect";
serialPort1.PortName = comboBox1.Text;
serialPort1.BaudRate = Convert.ToInt16(comboBox2.Text);
serialPort1.Open();
a = 1;
}
}
private void button2_Click(object sender, EventArgs e)
{
if (button2.Text == "On")
{
button2.Text = "Off";
serialPort1.Write("1");
}
else
{
button2.Text = "On";
serialPort1.Write("0");
}
}
private void button3_Click(object sender, EventArgs e)
{
if (button3.Text == "On")
{
button3.Text = "Off";
serialPort1.Write("3");
}
else
{
button3.Text = "On";
serialPort1.Write("2");
}
}
private void button4_Click(object sender, EventArgs e)
{
if (button4.Text == "On")
{
button4.Text = "Off";
serialPort1.Write("5");
}
else
{
button4.Text = "On";
serialPort1.Write("4");
}
}
}
}
dan ini codingan yang ke dua :::
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApplication2
{
public partial class Form1 : Form
{
int a = 0;
string rx;
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
if (a == 1)
{
button1.Text = "Connect";
serialPort1.Close();
a = 0;
this.Close();
}
else
{
button1.Text = "Disconnect";
serialPort1.PortName = comboBox1.Text;
serialPort1.BaudRate = Convert.ToInt16(comboBox2.Text);
serialPort1.Open();
a = 1;
}
}
private void serialPort1_DataReceived(object sender, System.IO.Ports.SerialDataReceivedEventArgs e)
{
rx = serialPort1.ReadExisting();
this.Invoke(new EventHandler(tampil));
}
void tampil(object sender, EventArgs e)
{
textBox1.AppendText(rx);
}
private void textBox1_TextChanged(object sender, EventArgs e)
{
if (textBox1.Text == "0")
{
pictureBox1.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "1")
{
pictureBox1.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
else if (textBox1.Text == "2")
{
pictureBox2.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "3")
{
pictureBox2.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
else if (textBox1.Text == "4")
{
pictureBox3.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "5")
{
pictureBox3.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
}
}
}
Baiklah untuk lebih tau cara kerja programnya silahkan kunjungi....
https://youtu.be/Hg9t5w6vJ4g
Selamat datang kembali sahabat mardianto, kali ini saya akan membuat :::::::
Sebuah aplikasi yang digunakan untuk menghidupkan dan
mematikan 3 buah LED yang ada pada Arduino. Pengaturan komunikasi
serial dapat dilakukan langsung pada aplikasi tanpa harus mengubah
program aplikasi.
ini adalah bentuk codingannya yang pertama ::::
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApplication1
{
public partial class Form1 : Form
{
int a = 0;
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
if(a==1)
{
button1.Text = "Connect";
serialPort1.Close();
a = 0;
this.Close();
}
else
{
button1.Text = "Disconnect";
serialPort1.PortName = comboBox1.Text;
serialPort1.BaudRate = Convert.ToInt16(comboBox2.Text);
serialPort1.Open();
a = 1;
}
}
private void button2_Click(object sender, EventArgs e)
{
if (button2.Text == "On")
{
button2.Text = "Off";
serialPort1.Write("1");
}
else
{
button2.Text = "On";
serialPort1.Write("0");
}
}
private void button3_Click(object sender, EventArgs e)
{
if (button3.Text == "On")
{
button3.Text = "Off";
serialPort1.Write("3");
}
else
{
button3.Text = "On";
serialPort1.Write("2");
}
}
private void button4_Click(object sender, EventArgs e)
{
if (button4.Text == "On")
{
button4.Text = "Off";
serialPort1.Write("5");
}
else
{
button4.Text = "On";
serialPort1.Write("4");
}
}
}
}
dan ini codingan yang ke dua :::
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApplication2
{
public partial class Form1 : Form
{
int a = 0;
string rx;
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
if (a == 1)
{
button1.Text = "Connect";
serialPort1.Close();
a = 0;
this.Close();
}
else
{
button1.Text = "Disconnect";
serialPort1.PortName = comboBox1.Text;
serialPort1.BaudRate = Convert.ToInt16(comboBox2.Text);
serialPort1.Open();
a = 1;
}
}
private void serialPort1_DataReceived(object sender, System.IO.Ports.SerialDataReceivedEventArgs e)
{
rx = serialPort1.ReadExisting();
this.Invoke(new EventHandler(tampil));
}
void tampil(object sender, EventArgs e)
{
textBox1.AppendText(rx);
}
private void textBox1_TextChanged(object sender, EventArgs e)
{
if (textBox1.Text == "0")
{
pictureBox1.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "1")
{
pictureBox1.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
else if (textBox1.Text == "2")
{
pictureBox2.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "3")
{
pictureBox2.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
else if (textBox1.Text == "4")
{
pictureBox3.Image = WindowsFormsApplication2.Resource1.mati;
textBox1.Clear();
}
else if (textBox1.Text == "5")
{
pictureBox3.Image = WindowsFormsApplication2.Resource1.hidup;
textBox1.Clear();
}
}
}
}
Baiklah untuk lebih tau cara kerja programnya silahkan kunjungi....
https://youtu.be/Hg9t5w6vJ4g
Langganan:
Postingan (Atom)
